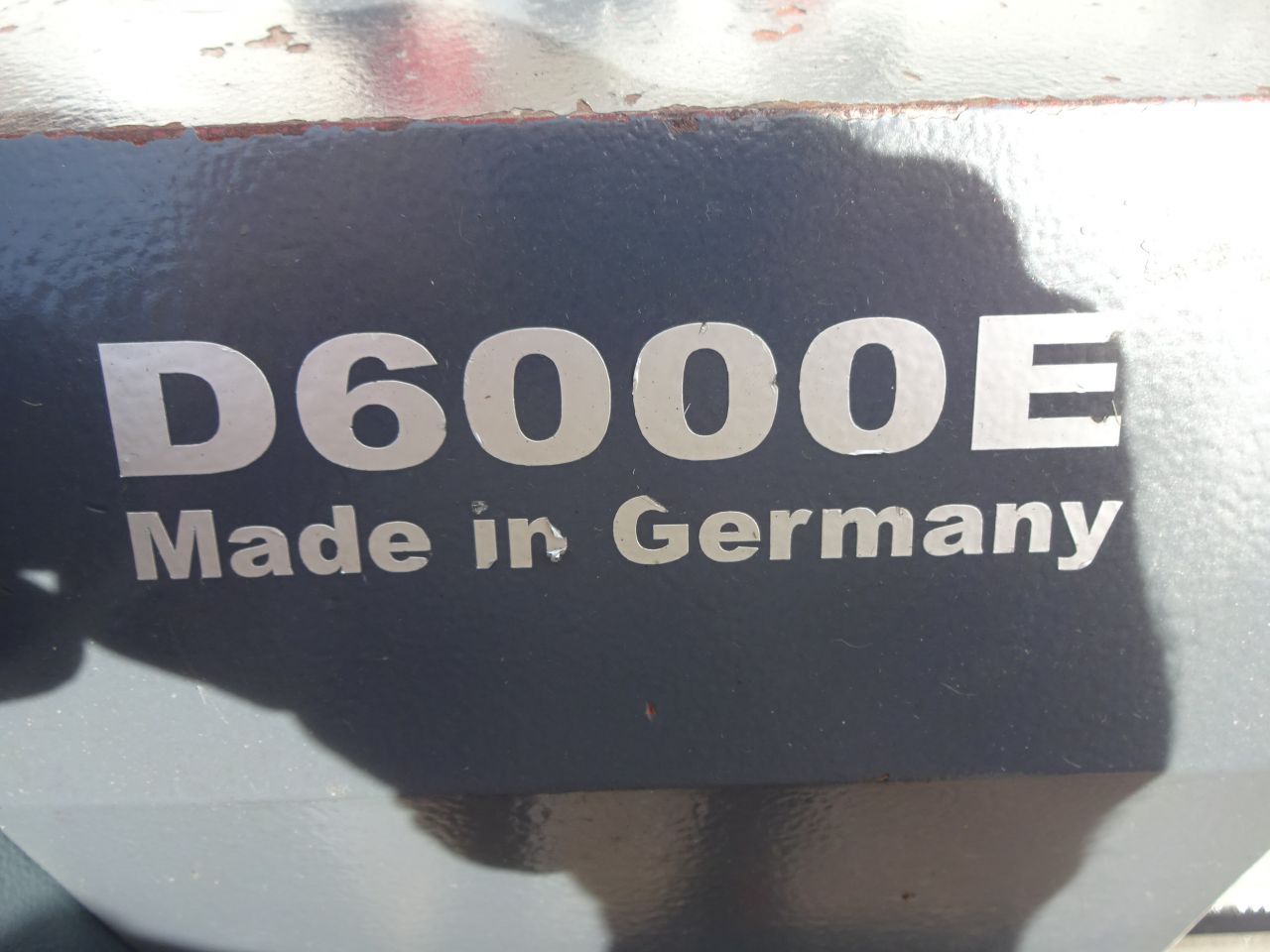

Wabeko D6000E

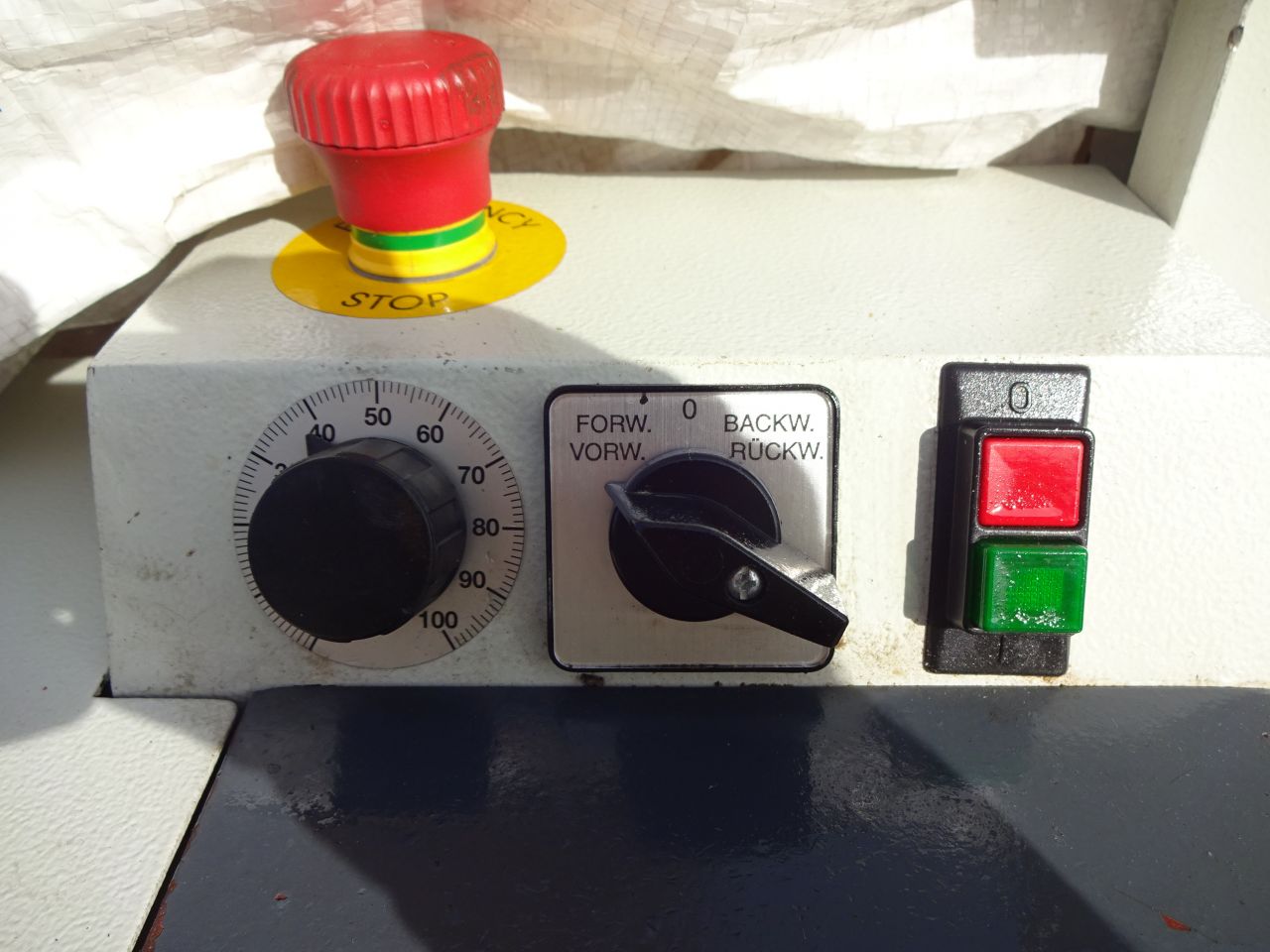

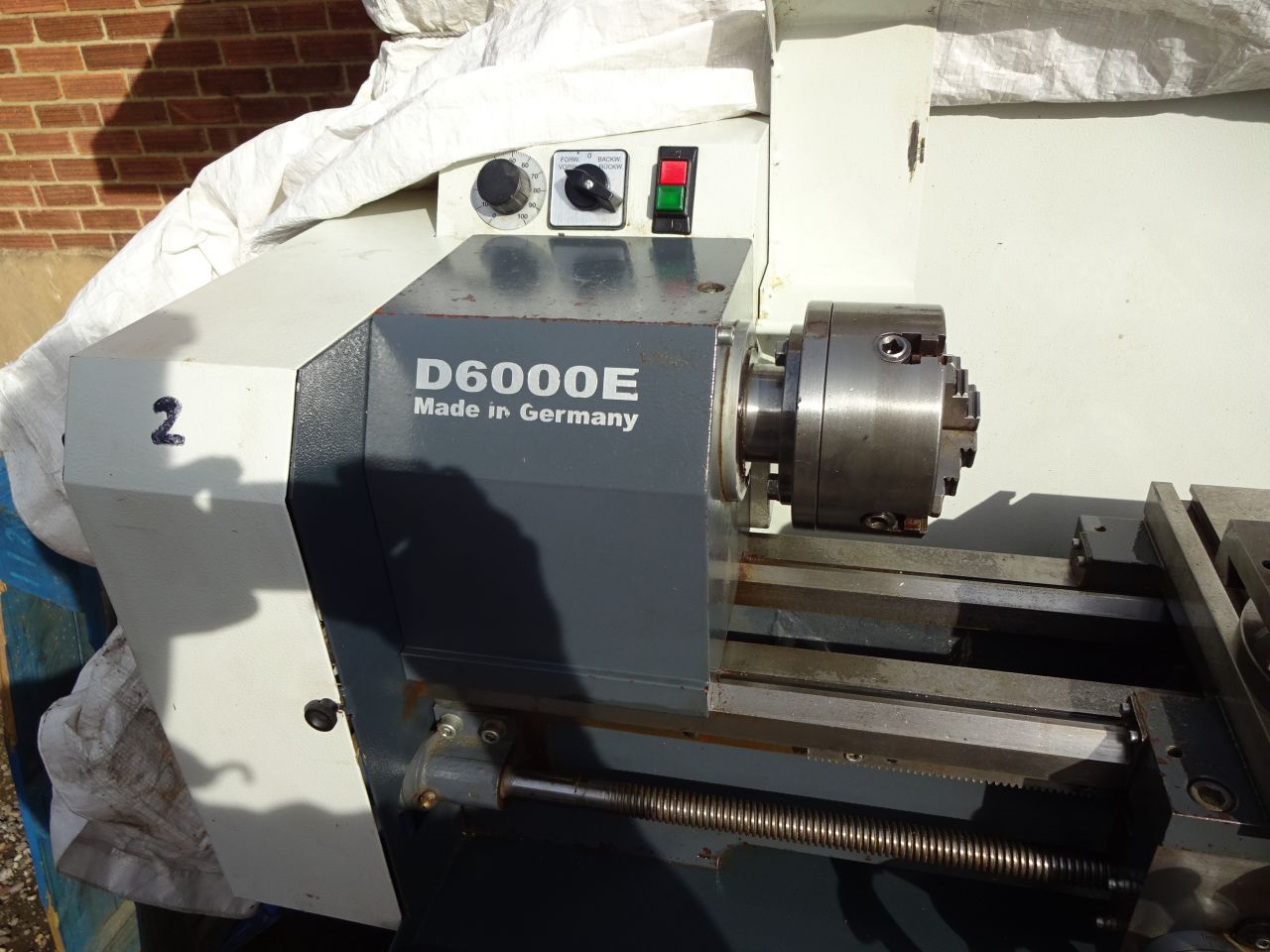

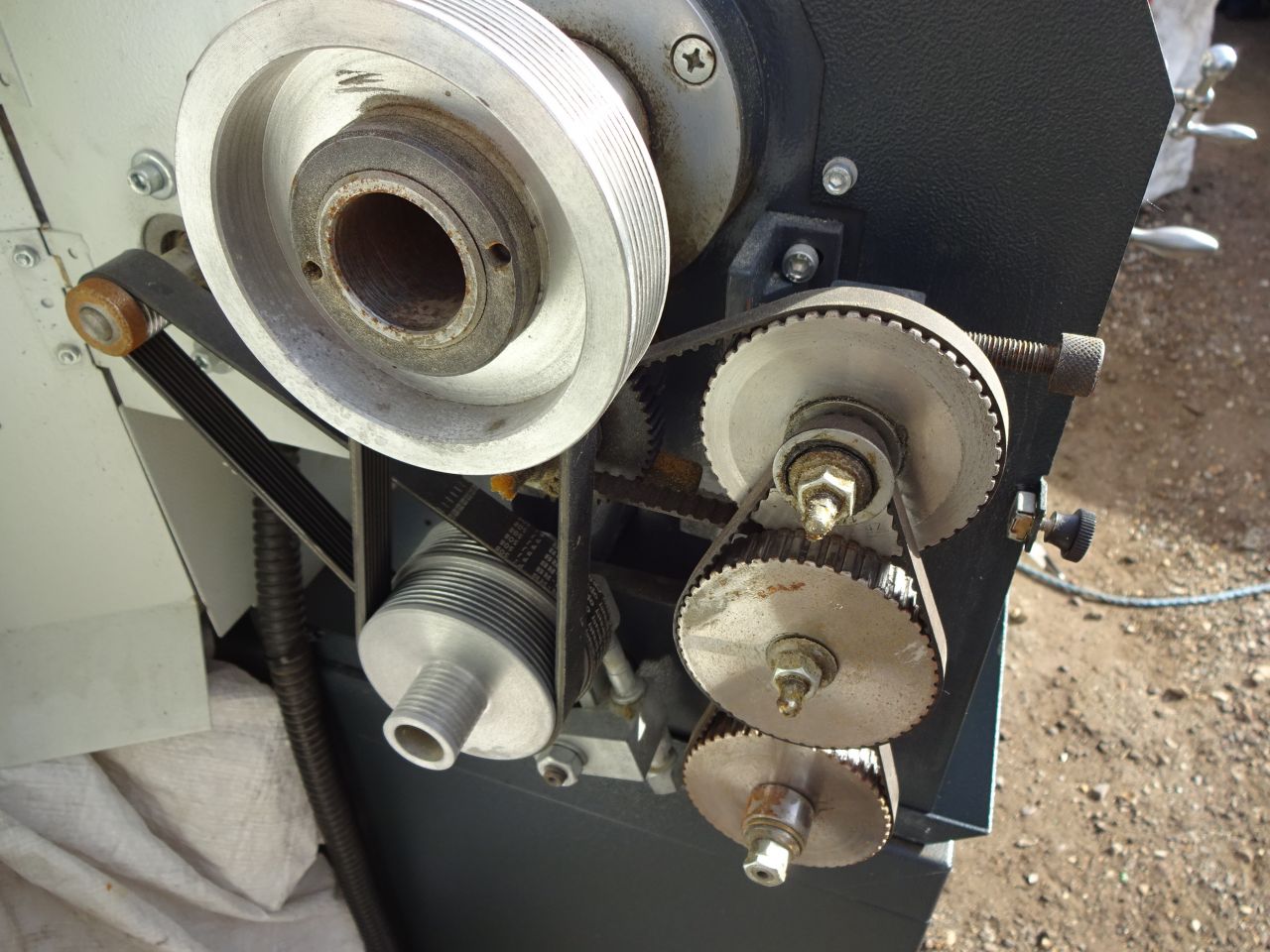

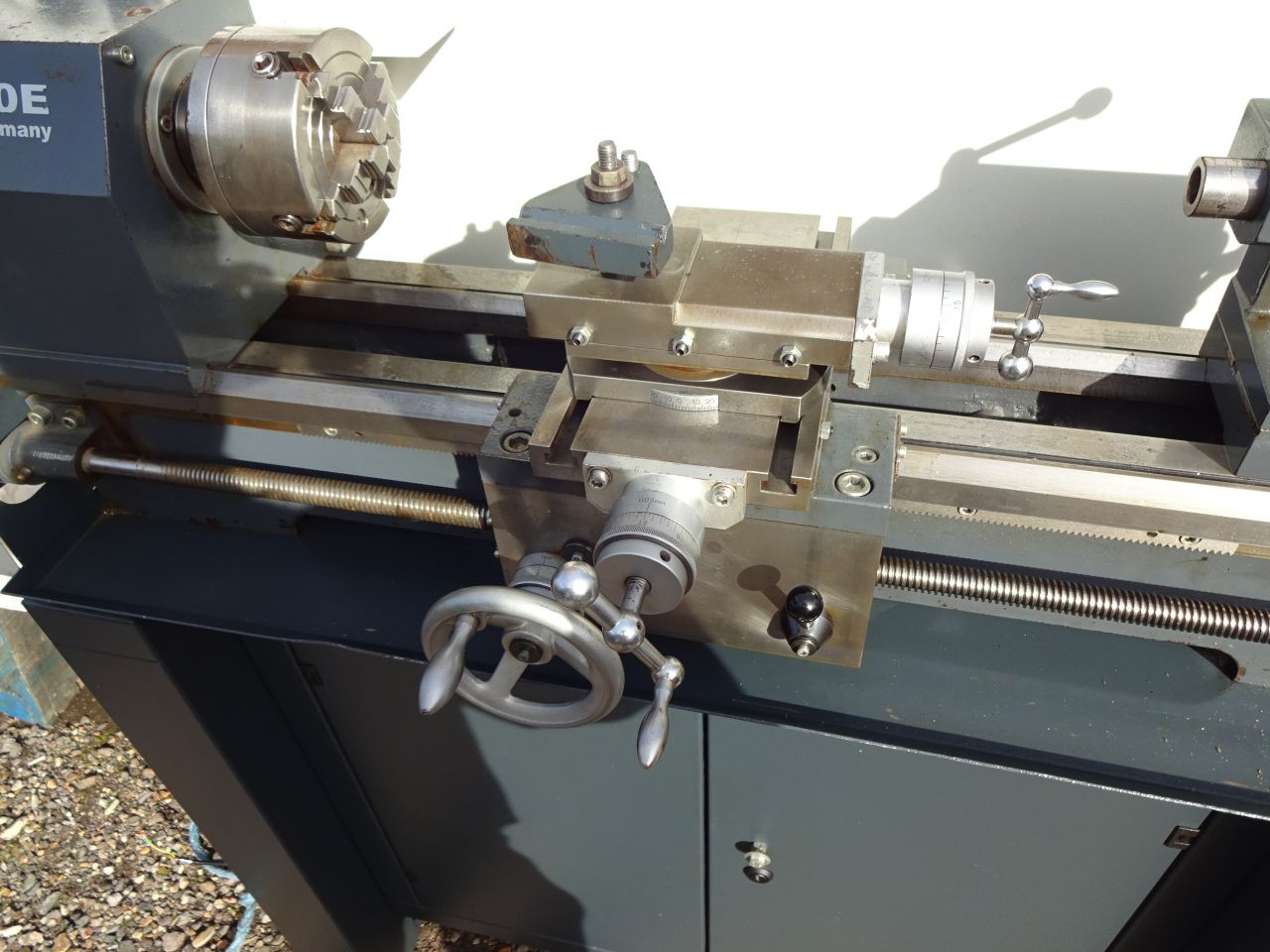

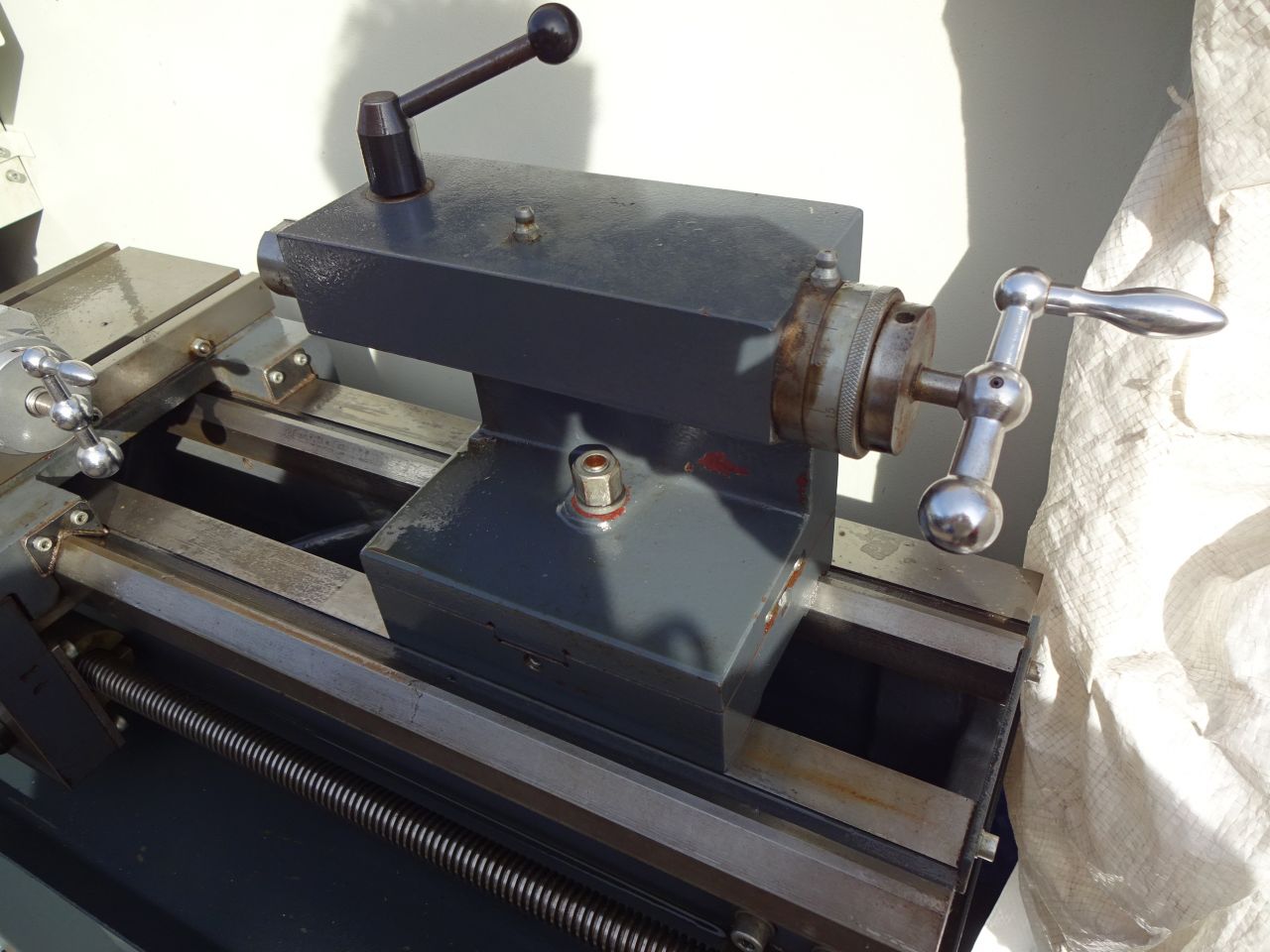

General Specification on the model in general, comes currently only as seen in photos; TECHNICAL DATA Working range Center distance 600 mm Center height 135 mm Turning Ø above cross slide 170 mm Turning Ø above the guideways 270 mm Bed width 185 mm Machine precision Machine precision according to DIN 8606 True running accuracy of spindle nose 0.005 mm cylindrical turning to 100 mm cantilevered 0.01 mm cylindrical turning with a finishing cut to 300 mm between the tips 0.015 mm Main drive motor Main drive motor 230 V, 50/60 Hz 1.4 kW electronically infinitely variable drive 30 – 2300 U/min Drive technology Spindle electronics with multiple fault monitoring circuit ● e.g. turning a steel shaft Ø 50 mm in one infeed approx. 10 mm Headstock Housing made of grey cast iron ● V-shaped slot scraped by hands Spindle head in 2 adjustable precision DIN tapered roller bearings ● Right-left rotation of the main spindle ● Intermediate gear between main spindle and drive ● high torque even in the lower speed range, e.g. for machining hard-to-cut materials ● Main spindle bore Ø 20 mm Taper in main spindle MT3 Main spindle nose Ø 70 mm according to DIN 6350 Tailstock with quick adjustment lateral adjustability of tailstock upper part ± 10 mm Tailstock sleeve mit Innenmorsekegel MK2 Travel of tailstock sleeve 65 mm Scale ring reading accuracy 0.1 mm Tool slide universally adjustable ● Dovetail guides readjustable free of play Reading accuracy of the scale rings 0.05 mm Travel of cross slide 140 mm Travel of longitudinal slide 60 mm Longitudinal slide can be swiveled through 360° max. height of turning tools 20 mm Cutting scrapers prevent dirt and cuttings entering the guideways ● Thread cutting (standard) with lead screw drive and change gear quadrant ● Tumbler gear for left- and right-hand threads Automatic longitudinal feed rate 0.085 und 0.16 mm/rev Change gear set for thread cutting metric 0.25 – 7.0 mm inch 10 – 40 TPI Overload clutch on the lead screw and the lead screw drive to avoid damage to the feed system ● Dimensions and weight Machine dimensions without packaging W1200 x D510 x H470 mm Weight without packaging 150 kg

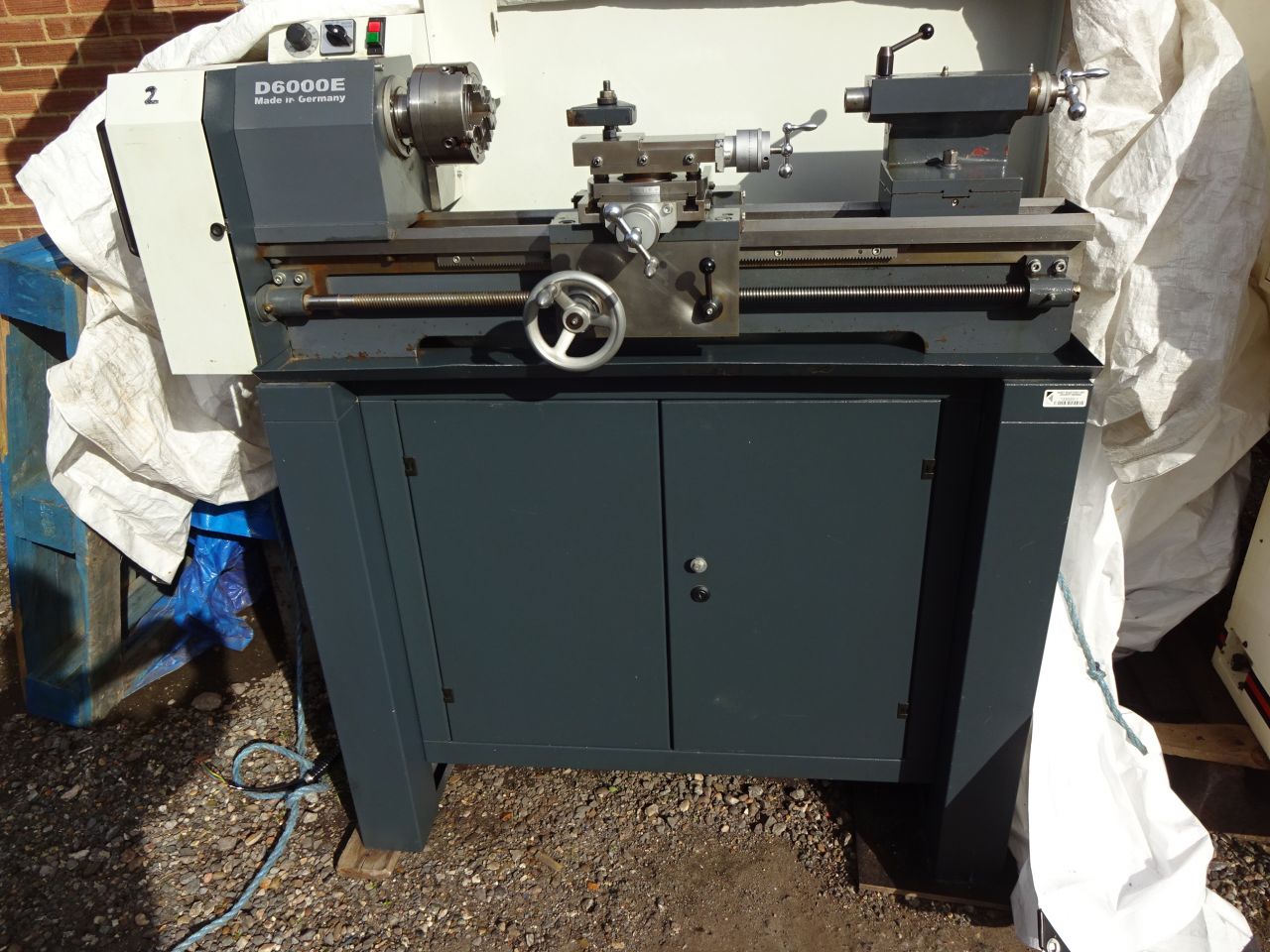

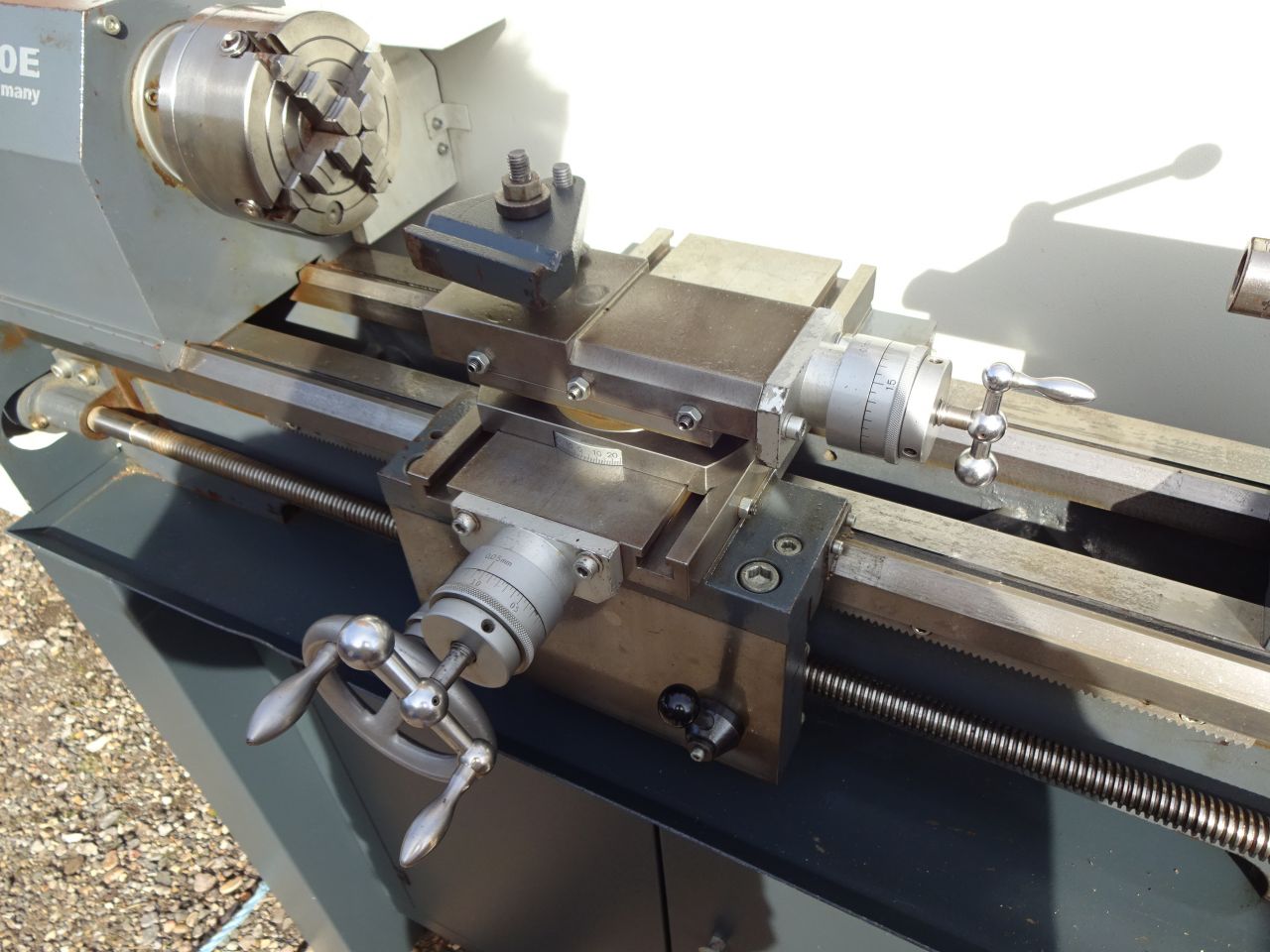

4 jaw chuck, cabinet stand, 240 volts variable speed, two machines available!
